Electrical Data
Frequency: 2400-2483 MHz
Gain: 16 dBi
VSWR: 15 dB
Cross-polar Ratio: >15dB (±60°≥10)
Front-to-back Ratio: >20 dB
Isolation: >30 dB
Intermodulation IM3: >-150dBc
Max Input Power: 100 W
Impedance: 50 Ohms
Lightning Protection: DC Ground



Mechanical Data
Connector: 2*N Female
Dimensions: 1370*285*90mm
Connector position: Bottom
length*width*height: /53.9*11.2*3.5in
Weight: 5.8kg/12.8lb
Reflector Material: Aluminum Alloy
Radome Material: UV Resistance PVC
Mounting Method: Mast
Mast Size: Ø40-Ø70mm
Rated Wind Velocity: 210km/h
Operating Temperature: -40~+65°C
Shipment Data
Packing Qty: 1pc/Carton
Carton Size: 1500*330*150mm
(length*width*height) /59.1*13.0*5.9in
Packing Weight: 6.5kg/11lb

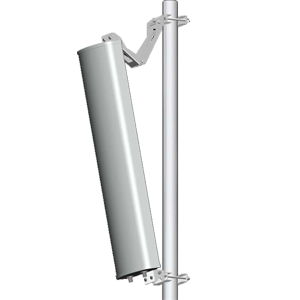

HW-SA24-120-16D - 2.4 GHz 16 dBi 120° Sector Dual Polarity NF

SKU: HW-SA24-120-16D
$199.95Price
