The Hana Wireless Gen 2 enclosure is a rugged weatherproof enclosure constructed from molded UV stable fiberglass reinforced polyester (FRP). It is ideal for both indoor and outdoor applications and is well suited for high temperature or corrosive environments. Every Gen 2 enclosure comes standard with a fully gasketed lid ensuring NEMA integrity, stainless steel hinge and padlockable latches for corrosion resistance and an integral mounting flange for mounting without the need for extra hardware. The color of the Gen 2 enclosure is an aesthetically pleasing machine tool gray (RAL 7035), allowing for a clean, cool, neutral appearance in any application.

  • Molded Fiberglass Reinforced Polyester (FRP) industrial Enclosure
  • Stainless steel quick release latches with padlock hasps
  • NEMA Type 4, 4X / IP66 rated
  • Fully gasketed raised lid & integral mounting flange
  • Horizontal slant configured 2U 19in rack mount
  • Dimensions (16x20x11 in)



POWERED MOUNTING PLATE
The redesigned Gen 2 powered mounting plate features duplex 120Vac outlets to power your equipment, a DIN rail mounted terminal block providing easier, safer installation of power to the enclosure, a grounding lug for additional protection and a universal slotted mounting design that allows for unlimited equipment mounting patterns.



ENVIRONMENT CONTROLS - FAN
To ensure trouble-free operation of your equipment, the Hana Wireless Gen 2 enclosure is available with a redesigned built-in filtered fan system that allows the enclosure to cool lowering internal temperatures allowing equipment to properly operate. The Gen 2 design includes the features of the powered mounting plate with the additional feature of a dual 12W, high airflow, low noise, thermostat-controlled fan system that turns on when the internal temperature rises to 100° F (38° C) +/-3° and turns off when the internal temperature falls to 70° F (21° C) +/-5°.

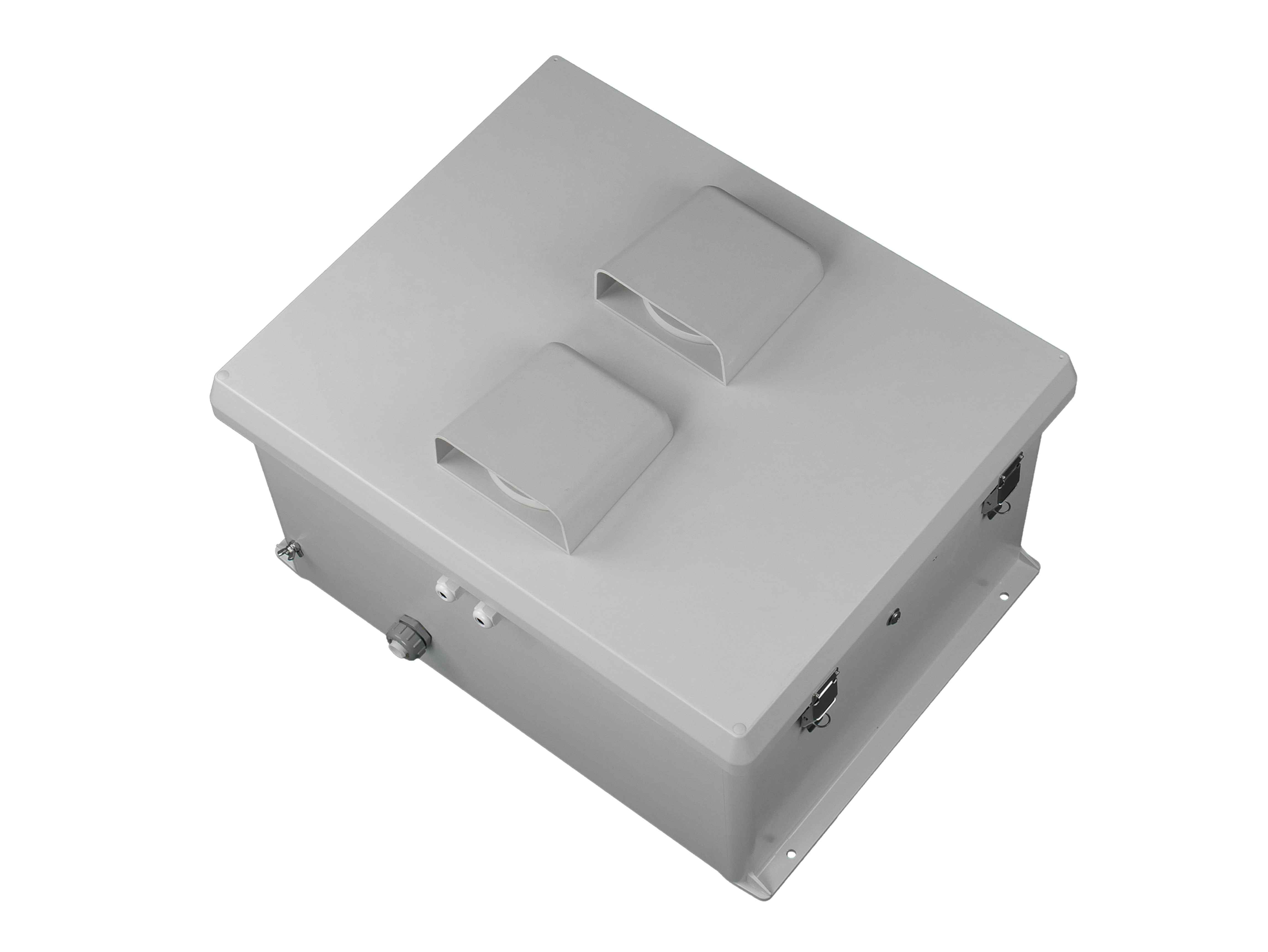

HW2-N20-RS1F -Gen2 16x20x11 Enclosure, 120Vac MNT Plate, Fans, 2U Rack Slant MNT

SKU: HW2-N20-RS1F
$539.00Price
